Product Description

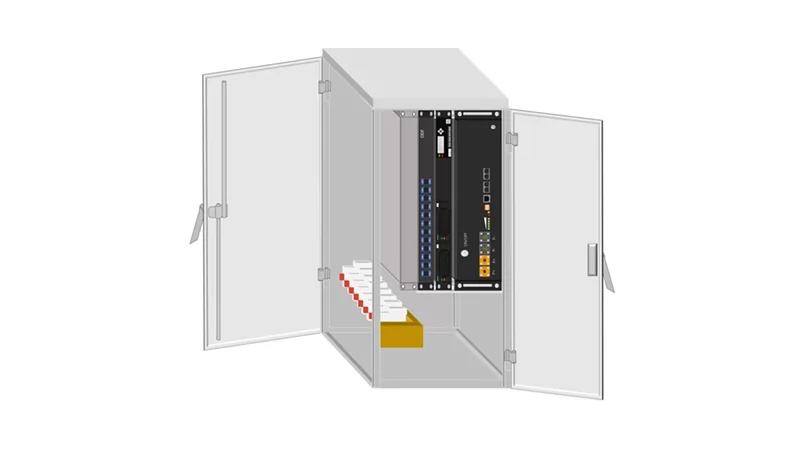

Base station energy cabinet: a highly integrated and intelligent hybrid power system that combines multi-input power modules (photovoltaic, wind energy, rectifier modules), monitoring units, power distribution units, lithium batteries, smart switches, FSU and ODF wiring, etc., to effectively solve Various functional requirements such as power supply, backup power supply, and optical network access of base station communication equipment.
Product Features
Introduce photovoltaic and wind energy to achieve low-carbon energy saving;
Simple installation method, which can support various installation methods such as wall hanging, pole holding and flooring;
Integrate monitoring unit and meet NB/4G wireless communication access operation and maintenance management platform at the same time;
The installation space of fiber splicing tray and passive wavelength splitter is reserved inside to facilitate fiber access;
The internal integrated lithium battery has the guarantee ability of backup power supply;
With intelligent power-off function, remote control of each branch output on-off function;
Photovoltaic, wind power generation, inverter output, 12V output, etc. can be configured according to demand;
| Configuration parameter table | |||||
| serial number | name | Parameter Description | quantity | unit | Remark |
| 1 | Outdoor cabinet cabinet | 750*520*380mm(H*W*D),The frame of the cabinet is made of 1.5mm galvanized material, and the heat insulation material is pasted inside;HJ-DYG03-1 | 1 | tower | |
| Front/side door opening operation, wall-mounted, pole-mounted, and floor-mounted installation; photovoltaic panel installation position is reserved on the top; | |||||
| 2 | Dynamic monitoring unit | 4-way RS485 serial port, 4-way DI input, 4-way DO dry contact output, the software has a web management interface, the collector can be configured through a web browser, and it supports centralized monitoring through SNMP or B interface access to the background monitoring system. Environmental detection: smoke detection, access control, temperature and humidity, water immersion, etc. | 1 | set | |
| 3 | Automatic fire extinguishing device | QRR0.1G/SQ hot aerosol fire extinguishing device, | 1 | set | |
| 4 | smart Lock | Smart lock: remote switch, card swiping, mechanical key; | 2 | set | |
| 5 | 12-core optical wiring | Including 12-core pigtail and fiber optic adapter, etc. | 1 | tower | |
| 6 | dome camera | ≥2 million infrared hemispheres (POE) (can support external memory card) | 1 | set | Door open capture function |
| 7 | smart fan | Intelligent adjustable speed fan, Rs485 communication, power consumption 30W, air volume MAX: 10.0m3/min | 1 | set | Need to be connected to FSU for monitoring |
| 8 | power distribution unit | AC input: 32A/3P*2 with interlock device; AC lightning protection: Class C 20KA-40KA; AC output: 32A/2P*10A/1P*2, national standard socket*2; DC output power distribution: 63A*1, 32A*2*16A*2; configure intelligent air switch *3 channels, battery air switch 100A*1; | 1 | set | Can be adjusted according to needs |
| 9 | rectifier module | Rectifier module 50A, high efficiency | 2 | set | |
| 10 | Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99%(This module is selected when configuring photovoltaic modules) | 1 | set | |
| 11 | Wind Energy Control Module | 2.5kW, input AC96V, output DC48V | 1 | set | Optional |
| (matched with fan) | |||||
| 12 | inverter module | Inverter module 3KVA | 1 | set | Optional |
| 13 | 12V rectifier module | 500W | 1 | set | Optional |
| 14 | Lithium iron phosphate battery | 100AH, rack-mounted -48V, more than 3000 charging cycles, 16S | 1 | set | 5KW.h |
| 15 | Solar panels | Single crystal panel complete assembly 290W, including adapter, installation accessories | 2 | set | Optional |
| Maximum 2 pieces | |||||
| 16 | Wind Turbines | 1KW~2KW, including pole body 9 meters high | 1 | set | Optional |
| (matches with fan module) |
